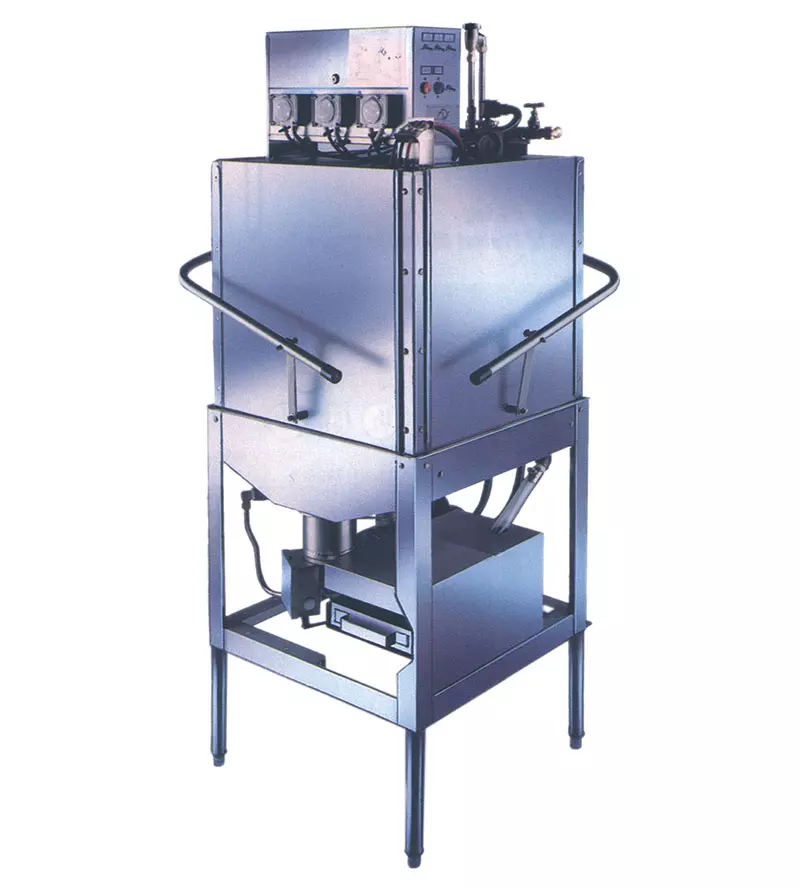

ADS L Series

ADS L SERIES: The Prudent Choice

DECREASES your Chemical Usage. SAVES on Sewer Surcharges. REDUCES Heating Costs. LOWERS Water Bills.

  • Remarkable performance – each rack uses only 1.2 gallons of water!
  • Maximum Capacity: 55 racks per hour! (60 second time cycle)
  • A true LOW-ENERGY, dump and fill dish machine!
  • L-3DWC – Corner inside sump with built-in scrap accumulator.
  • L-3DW – Pass-thru inside sump with built-in scrap accumulator.

All “L” Series, Low-Water Machines are Convertible (corner to pass-thru or pass-thru to corner). A True 3-door Design, with only two doors opening in either direction.


60, 72, and 90 second time cycles options. It’s two-stage filter protects pump and spray jets Stainless steel sump and impeller 1.2 gallons of water per rack.

  • Top Mount Controls
  • Exterior Mounted Chemical Pump Heads
  • Quick-disconnect, Easy Service Access, Electrical Controls
  • True 3-Door Design, with only 2 Doors opening in either configuration
    • Eliminates water on back wall
    • Doors stay in alignment
  • Eye-Level Temperature Gauge
  • Built-in deliming Switch
  • Large Capacity Internal
  • Scrapper (Inside Sump Only)
  • No-Adjustment Solenoid Replacement
  • 1 1/2 H.P. Wash & Rinse Pump
  • Prime Switches
  • Automatic Chemical Feed
  • Nylatron® Strips to Protect Stainless Doors
