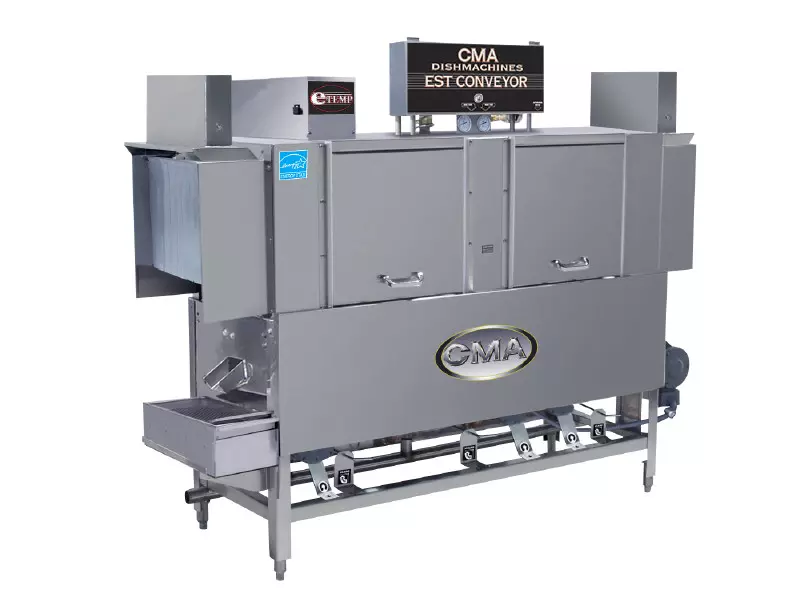

CMA EST-66/66 TALL High Temperature, Low Temperature 66″ Conveyor Dishwasher

The Models EST-66H high temperature and EST-66L Chemical Sanitizing conveyor dishwashers meets ETL sanitation, UL, and CUL construction standards. The EST-66 performs three separate washing functions including a built-in power rinse, all in a 66″ space. The EST-66 washes up to 249 racks per hour and uses a minimum 0.46 gallons of water per rack while achieving sparkling, clean, dry dishes. Constructed entirely of stainless steel.


  • ENERGY STAR® Approved.
  • Automatic water control system.
  • 249 racks / 996 covers per hour.
  • Economical to operate. Uses only 0.46 gallons of water per rack of dishes.
  • Single control switch activation.
  • Power rinse heater system.
  • Unique 4-stage washing process provides two wash stations, power heated rinse and final rinse all in a 66″ machine.
  • Automatic soil purging system filters wash water and traps plate debris into an external tray. Tray can be easily removed for cleaning.
  • All stainless steel construction offers durable performance and years of trouble-free operation.
  • Chemical resistant industrial heaters are proven to be more durable than commercial grade heaters.
  • Large 19″ opening accommodates larger items and utensils (EST-66).
  • Large 25″ opening accommodates larger items and utensils (EST-66 TALL).
  • Auto start/stop makes operation more energy efficient.
  • Easy to remove and replace curtains for cleaning.
  • Includes table limit switch and rack saver clutch system that protects the machine, dishracks and table from damage.
  • Stainless steel chemical injection chamber.

available options

  • Corner Feed Table (left or right must specify) FACTORY INSTALLED ONLY
  • Vent Hood with 4″ x 16″ Vent and Damper Control (2 per set) P/N: 13901.82
  • Stainless Steel dishtables
  • Drain Water Tempering Kit P/N: 13470.10
  • “E Temp” CMA booster heater(40° and 70° rise) FACTORY INSTALLED ONLY
  • Hatco Booster Heater also available (specify voltage & phase)
  • Scrap Trap Single Drain Connection Kit P/N: 01321.00
  • 208V-240V / 480V
  • Sheet Pan Rack P/N: 1154.00
  • 6″ EXT height accommodates pots and pans and larger sheet pans
  • Exhaust Fan Control P/N: 13578.00
  • Note: E-Temp not available single phase 70° rise.
  • Note: E-Temp standard voltage 208-230V three phase
